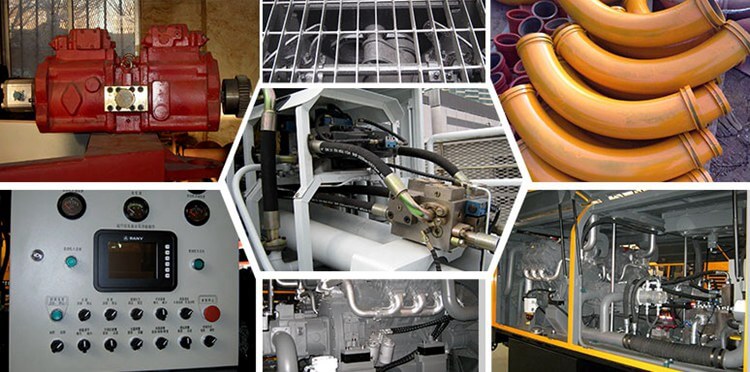

HBS Electric Concrete Pump
Product Description
Concrete pumps are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities etc. Concrete trailer pumps are also used for the conveying of fine stone concrete, fire-resistant and heat-insulating materials in various construction projects.
Parameters
| Model | HBS40-10-45 | HBS50-12-55 | HBS60-13-90 | HBS80-16-110 | |
| Max. Theoretic capacity | m3/h | 40 | 50 | 60 | 80 |
| Max, Theoretic pressure | Mpa | 10 | 12 | 12.5 | 15.7 |
| Motor power | kw | 45 | 55 | 90 | 110 |
| Max. Theoretic Vertical distance | m | 120 | 150 | 200 | 250 |
| Max. Theoretic horizontal distance | m | 250 | 300 | 500 | 800 |
| Disribution valve type | -- | S - valve | |||
| Hydraulic oil circuit type | -- | Open Circuit | |||
| Specification of concrete cylinder | mm | Ø160x1000 | Ø180x1200 | Ø200x1800 | Ø200x1800 |
| Specification of main oil cylinder | mm | Ø100x1000 | Ø125x1200 | Ø140x1800 | Ø140x1800 |
| Oil tank capacity | L | 300 | 300 | 420 | 420 |
| Hopper capacity | L | 600 | |||
| Max. Aggregate diameter | mm | Slick scree: 30、 Scree: 20 | Slick scree: 40、 Scree: 3 | Slick scree: 50、 Scree: 40 | |
| Dimension (LxWxH) | mm | 4500×1750×1600 | 4800×1800×1650 | 5800×2000×1750 | 5800×2000×1800 |
| Overall weight | kg | 3200 | 3500 | 5500 | 5800 |
| pulling speed | km/h | ≤8 | |||
-
