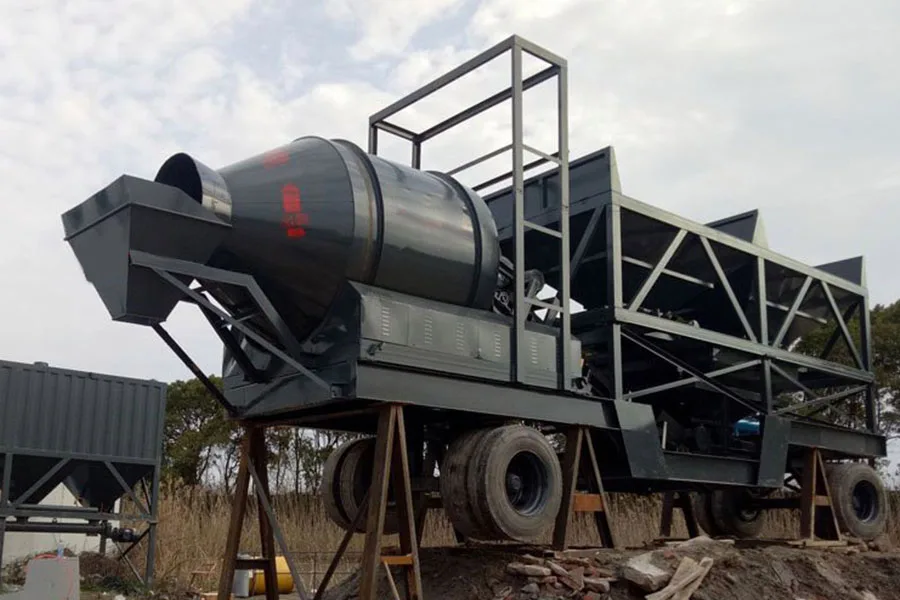

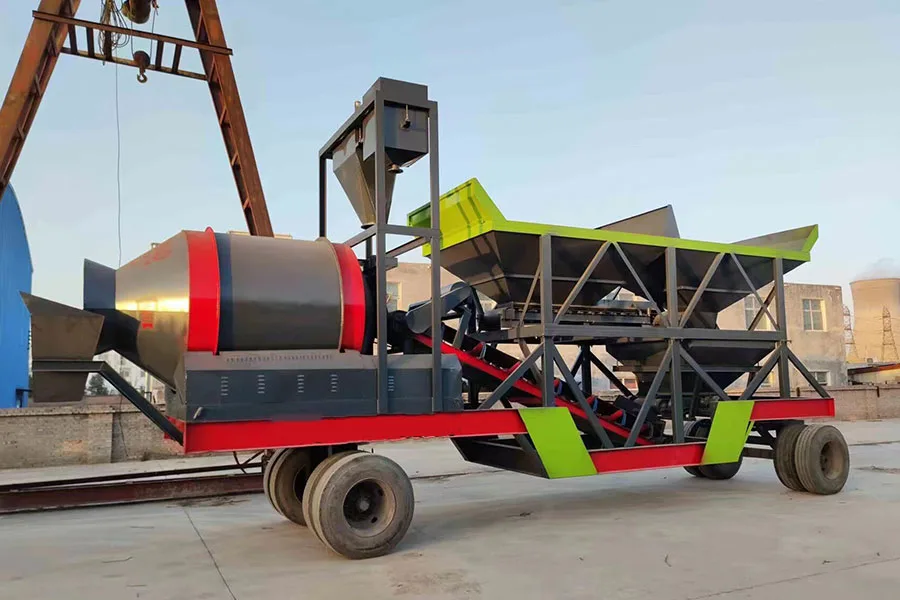

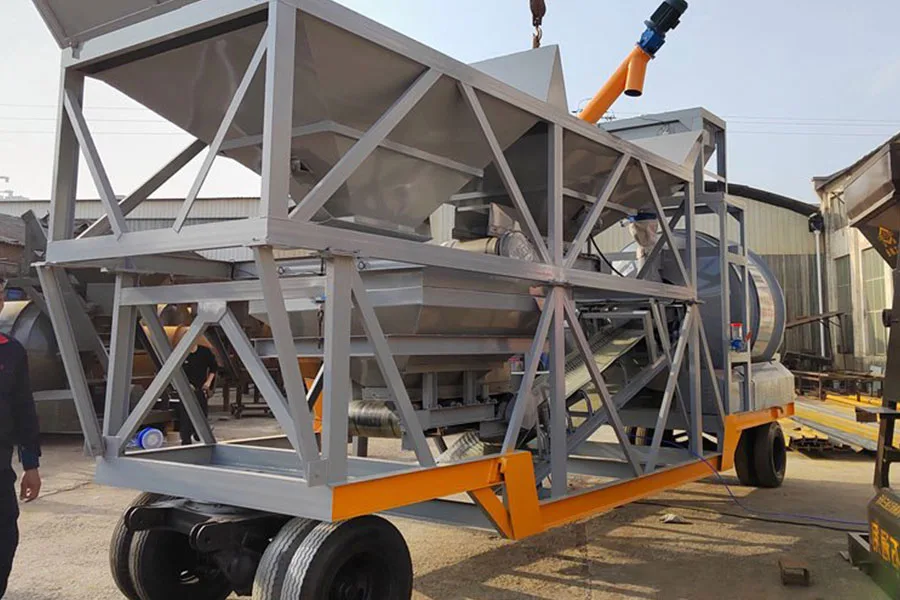

YHZM35-3 Drum Mixer Mobile Concrete Batching Plant
YHZM35-3 Drum Mixer Mobile Concrete Batching Plant is designed for mobile concrete production with 35m3/h capacity, jzm drum mixer with economical mobile concrete production performance, quick installation and flexible relocation. It is suitable for road construction, bridge projects, temporary construction sites and mobile ready mix concrete production.
Product Advantages
YHZM mobile concrete batching plant
Suitable for small and medium mobile concrete production projects that...
Integrated mobile structure for quick relocation
Reliable configuration for concrete machinery projects.
Fast installation with lower foundation requirement
Reliable configuration for concrete machinery projects.
Compact design and convenient transportation
Reliable configuration for concrete machinery projects.
Automatic control system for stable batching accuracy
Reliable configuration for concrete machinery projects.
Cement silo, control system and
Cement silo, control system and aggregate storage can be customized
Technical Parameters
| Model | YHZM35-3 |
|---|---|
| Product Type | YHZM Drum Mixer Mobile Concrete Batching Plant |
| Mixer Type | JZM drum mixer |
| Theoretical Capacity | 35m3/h |
| Discharging Height | 1300 mm |
| Total Power | 46 kW |
| Total Weight | 13 t |
| Concrete Mixer | JZM750 |
| Mixing Motor Power | 5.5 x 2 kW |
| Discharging Volume | 750 L |
| Aggregate Batching Machine | PLD1200-3 |
| Aggregate Storage | 5.5 x 3 m3 |
| Max. Aggregate Diameter | 60/80 mm |
| Cement Weighing | 500 kg |
| Water Weighing | 220 kg |
| Additive Weighing | 30 kg |
| Trailer Speed | 40-60 km/h |
| Optional Cement Silo | 50/100 t |
| Warranty | 18 months |
| After-Sales Service | Erection and commissioning, operator training, technical support |
Application Scenarios
Ready-mix Concrete Production
Stable batching and mixing for commercial concrete supply.
Road and Bridge Construction
Reliable supply for transport infrastructure projects.
Infrastructure Projects
Continuous production for municipal and railway works.
High-rise Building Construction
Consistent concrete output for urban construction.
Working Process
01
Aggregate Loading Into Batching Machine
02
Aggregate Weighing According To Formula
03
Aggregate Feeding To Mixer
04
Cement Water And Additive Weighing
05
Concrete Mixing
06
Finished Concrete Discharging
Why Choose Hengyuan
20+ Years
Long-term concrete machinery manufacturing and export experience.
100+ Countries
Export-ready equipment and practical delivery support for global projects.
Professional R&D Team
Engineers provide reliable equipment design and project configuration.
ISO Quality Certified
Strict inspection and quality control before delivery.
24/7 Service
Responsive technical support for overseas construction sites.
Customized Solutions
Equipment layout and configuration matched to project needs.
FAQ
Q1: What capacity is YHZM35-3 mobile concrete batching plant?
YHZM35-3 has a theoretical production capacity of 35m3/h. Actual output depends on concrete formula, aggregate condition and site operation.
Q2: What mixer does YHZM35-3 use?
It uses JZM750 with JZM drum mixer.
Q3: Is this mobile batching plant easy to transport?
Yes. It adopts integrated mobile structure and trailer design for convenient transportation and relocation.
Q4: Can the configuration be customized?
Yes. Cement silo, control system, aggregate storage, mixer model and other configurations can be customized according to your project.
Q5: What is the warranty period?
The warranty period is 18 months.
