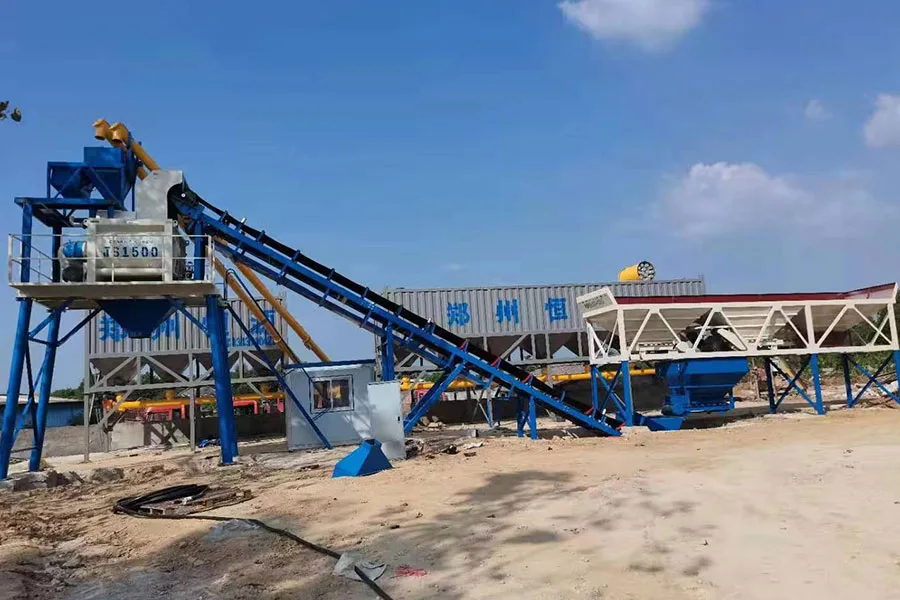

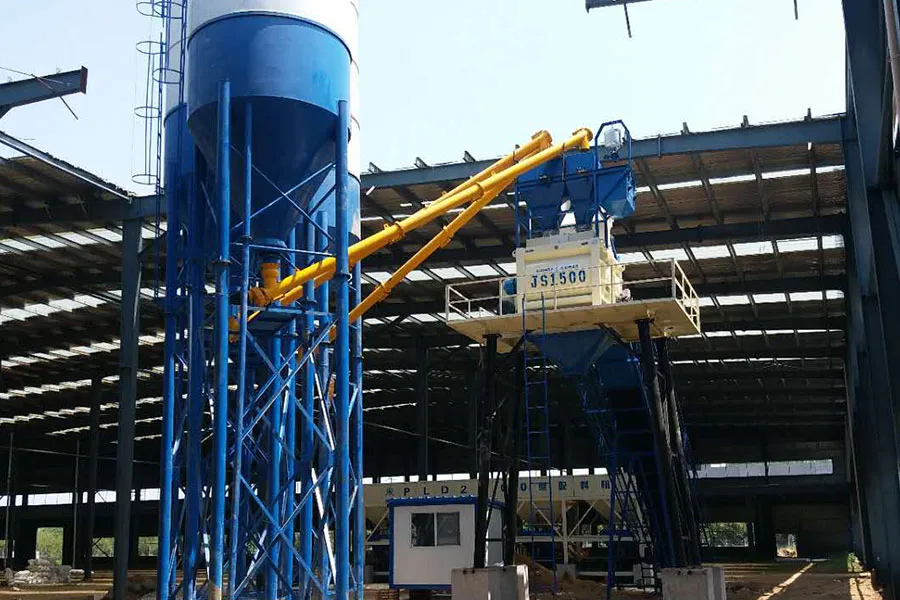

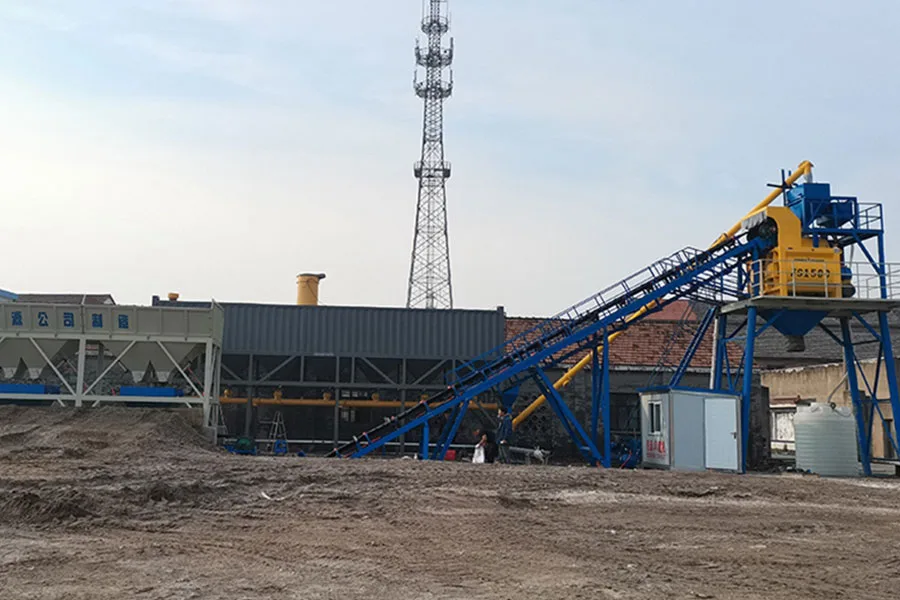

HZS90 Stationary Concrete Batching Plant
HZS90 Stationary Concrete Batching Plant is a belt conveyor stationary concrete batching plant with 90m3/h capacity, JS1500 twin-shaft mixer and incline belt conveyor aggregate feeding. It is suitable for ready mix concrete, commercial concrete supply, road and bridge construction, building projects and infrastructure works.
Product Advantages
Inclined Belt Conveyor
Continuous feeding for ready-mix concrete plants.
Capacity Range
From 25m3/h to 270m3/h
Twin-shaft concrete mixer
Reliable configuration for concrete machinery projects.
Skip hopper or belt conveyor aggregate feeding
Reliable configuration for concrete machinery projects.
Accurate weighing system
Reliable configuration for concrete machinery projects.
Automatic control system
Reliable configuration for concrete machinery projects.
Technical Parameters
| Model | HZS90 |
|---|---|
| Capacity | 90m3/h |
| Product Type | Belt Conveyor Stationary Concrete Batching Plant |
| Mixing System | Twin-shaft concrete mixer |
| Aggregate Feeder | Incline belt conveyor |
| Discharging Height | 4200 mm |
| Concrete Mixer | JS1500 |
| Mixing Cycle | <=60 s |
| Aggregate Batching Machine | 4x12m3 |
| Weighing System | Water, Cement, Fly-Ash, Additive |
| Weighing Precision | ?1% |
| Air System | Air compressor, etc. |
| Control System Type | Computer auto-control module / PLC can be optional |
| Control Panel Board | Buttons, lamps, indicators, CCTV, etc. |
| Electric Components | China CHINT, SCHNEIDER |
| Control Room | With air conditioner and chair |
| Documentation | Foundation layout, Electrical diagram, Operation |
| After-sale Service | Erection & commissioning, operator training |
| Warranty | 18 months |
| Structure |
|
| Optional Screw Conveyor Diameter / Length | ?219/273, L=8000/9000 mm |
| Optional Cement Silo Capacity | 50/100/150/200/300/500 t |
| Outer Plant Pack | With main frame duct collector |
Application Scenarios
Ready-mix Concrete Production
Stable batching and mixing for commercial concrete supply.
Road and Bridge Construction
Reliable supply for transport infrastructure projects.
Infrastructure Projects
Continuous production for municipal and railway works.
High-rise Building Construction
Consistent concrete output for urban construction.
Working Process
01
Aggregate Batching
02
Aggregate Feeding
03
Cement, Water & Additive Weighing
04
Twin-shaft Mixing
05
Concrete Discharging
06
Automatic Control Monitoring
Why Choose Hengyuan
20+ Years
Long-term concrete machinery manufacturing and export experience.
100+ Countries
Export-ready equipment and practical delivery support for global projects.
Professional R&D Team
Engineers provide reliable equipment design and project configuration.
ISO Quality Certified
Strict inspection and quality control before delivery.
24/7 Service
Responsive technical support for overseas construction sites.
Customized Solutions
Equipment layout and configuration matched to project needs.
FAQ
Q1: What type of stationary concrete batching plant is HZS90?
HZS90 is a belt conveyor stationary concrete batching plant with incline belt conveyor aggregate feeding.
Q2: What is the capacity of HZS90?
The theoretical production capacity is 90m3/h. Actual output depends on concrete formula, site operation and project configuration.
Q3: What mixer does HZS90 use?
It uses a JS1500 twin-shaft concrete mixer for stable and uniform concrete mixing.
Q4: Can the plant be customized according to my project?
Yes. Mixer model, aggregate bins, cement silo capacity, control system, layout and other configurations can be customized according to your project requirements.
Q5: Do you provide installation and training?
Yes. We provide erection and commissioning support, operator training and technical guidance.
Q6: What is the warranty period?
The warranty period is 18 months.
